DA-2450-RM-01

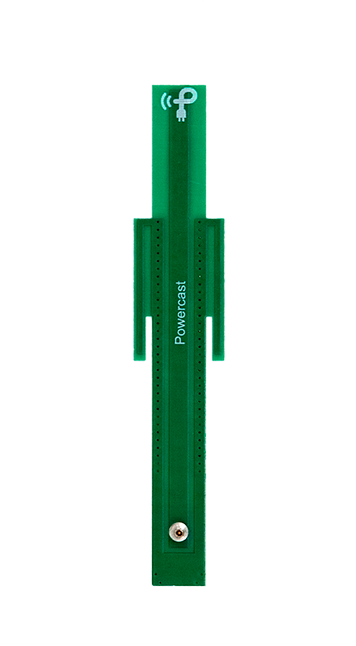

Powercast_DM-2450-RM-01_small_front

The DA-2450-RM-01 is a dipole antenna designed to work in the UHF RF range. It has linear polarization and an omnidirectional radiation pattern. It utilizes a sleeve-like balun to eliminate impedance mismatches when being fed from an unbalanced source. This, along with the SMA connector, makes it ideal when testing with development kits that need UHF RF energy, specifically energy harvesting.

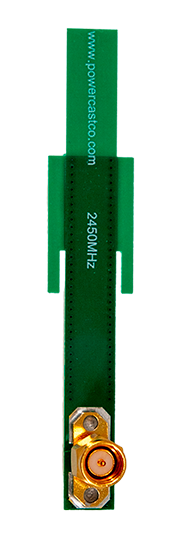

Powercast_DM-2450-RM-01_small

Antenna Parameters

The DA-2450-RM-01 has the following parameters:

  • Frequency Range: 2.4 – 2.5 MHz
  • Peak Gain: 1.80 (2.55 dBi)
  • Return Loss: < -10dB (2.41 – 2.48 MHz)
  • Impedance: 50 ohms
  • Radiation Pattern: Omni-Directional
  • Half-Power Bandwidth: 70°
  •  Polarization: Linear – Vertical
  • VSWR: < 2:1 (2.41 - 2.48 GHz)
  • Connector: SMA
  • PCB Dimesions: 15*82*1.6 mm
DA-2450-RM-01 Datasheet
