DA-915-01

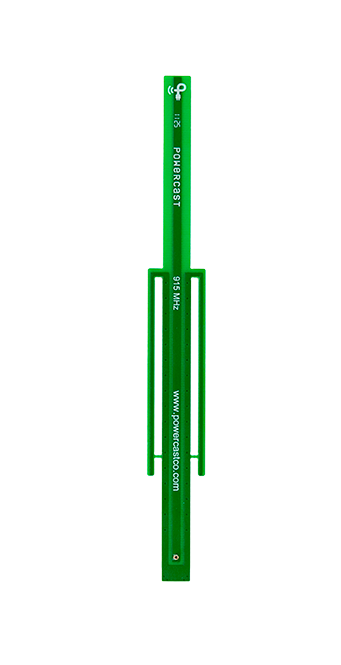

DA-915-01_web_b

The DA-915-01 antenna is a dipole antenna designed to work in the UHF RF range. It has linear polarization and an omnidirectional radiation pattern. It utilizes a sleeve-like balun to eliminate impedance mismatches when being fed from an unbalanced source. This, along with the SMA connector, makes it ideal when testing with development kits that need UHF RF energy, specifically RFID and energy harvesting

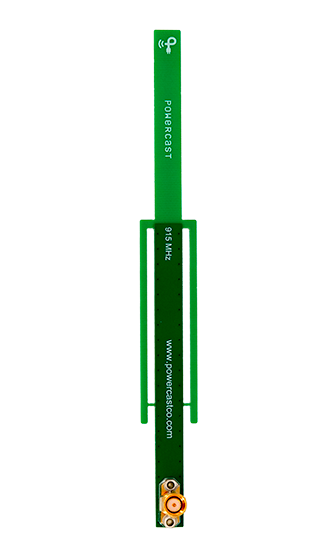

DA-915-01_web-2

Antenna Parameters

 The DA-915-01 has the following parameters:

  • Frequency Range: 902 – 928 MHz
  • Peak Gain: 1.50 (1.7 dBi)
  • Return Loss: < -10dB (894 – 949 MHz)
  • Impedance: 50 ohms
  • Radiation Pattern: Omni-Directional
  • Half-Power Bandwidth: 80°
  • Polarization: Linear – Vertical
  • VSWR: < 2:1 (892 - 952.0 MHz)
  • Connector: SMA
DA-915-01 Datasheet
