P2110-XX-EVB

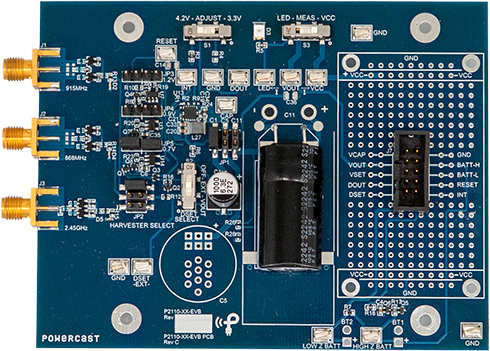

Powercast_P2110-XX-EVB_small

The P2110-XX-EVB features the Powercast PCC110 Powerharvester® with support for three frequency bands to test. The EVB converts radio frequency (RF) energy into DC power and stores it in a capacitor to provide an intermittent, regulated voltage output. The three frequency bands supported by this EVB are 915MHz, 868MHz, and 2.45GHz.

Powercast_P2110-XX-EVB_small-1

Ordering Information

The Evaluation Board (EVB) is orderable under part number P2110-XX-EVB.

The EVB requires a user-provided antenna. Powercast offers several options for the antennas:

  • PA-915-01 Patch Antenna with 915 MHz Frequency band
  • DA-915-01 Dipole Antenna with 915 MHz Frequency band
  • PA-868-01 Patch Antenna with 868 MHz Frequency band
  • DA-868-01 Dipole Antenna with 868 MHz Frequency band
  • PA-2450-01 Patch Antenna with 2.45 GHz Frequency band
  • DA-2450-01 Dipole Antenna with 2.45 GHz Frequency band
P2110-XX-EVB Datasheet
