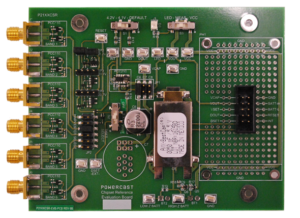

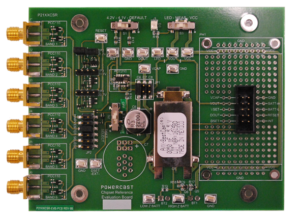

Features
- Contains the PCC110 & PCC210 chips, providing pulsed-power for battery-free devices or charging batteries
- Configurable, regulated output voltage from 2V to 5.5V
- Operates within six different frequency bands with the following center frequencies:
- GSM-850 uplink (836.5 MHz)
- Europe RFID & GSM-850 downlink (879.5 MHz)
- ISM USA & GSM-900 uplink (904 MHz)
- GSM-1800 (1747.5 MHz)
- GSM-1900 uplink (1880 MHz)
- WiFi 2.4GHz (2450 MHz)
- Includes two capacitors for charge storage
- LED for simple visual verification of operation
