PA-2450-RM-01

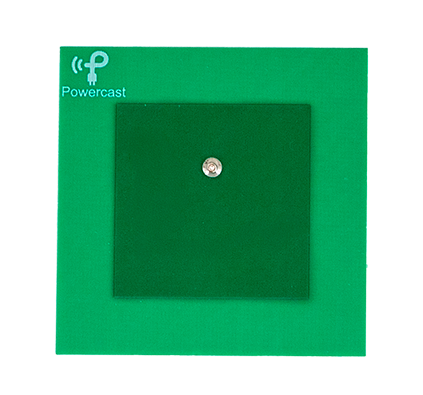

Powercast_PA-2450-RM-01_small_front

The PA-2450-RM-01 is a patch antenna designed to work in the UHF RF range. It has linear polarization and a directional radiation pattern. The SMA connector makes it ideal when testing with development kits that need UHF RF energy, specifically energy harvesting.

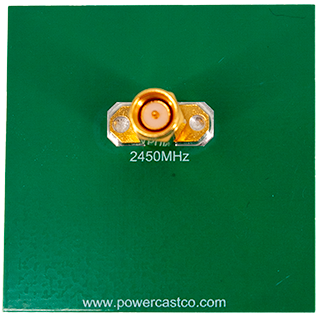

Powercast_PA-2450-RM-01_small-2

Antenna Parameters

The PA-2450-RM-01 has the following parameters:

  • Frequency Range: 2.4 – 2.5 MHz
  • Peak Gain: 3.90 (5.91 dBi)
  • Return Loss: < -10dB (2.42 – 2.47 MHz)
  • Impedance: 50 ohms
  • Radiation Pattern: Single broadside lobe
  • Half-Power Bandwidth: 58° horizontal, 55° vertical
  • Polarization: Linear – Vertical
  • VSWR: < 2:1 (2.43 - 2.47 GHz)
  • Connector: SMA
  • PCB Dimesions: 50*50*1.6 mm
PA-2450-RM-01 Datasheet
