PA-868-01

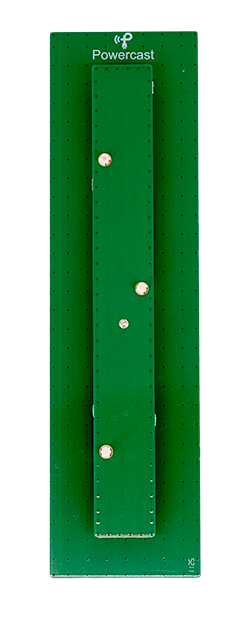

Powercast_PA-868-01_web_B-1

The PA-868-01 is a patch antenna designed to work in the UHF RF range. It has linear polarization and a directional radiation pattern. The SMA connector makes it ideal when testing with development kits that need UHF RF energy, specifically RFID and energy harvesting.

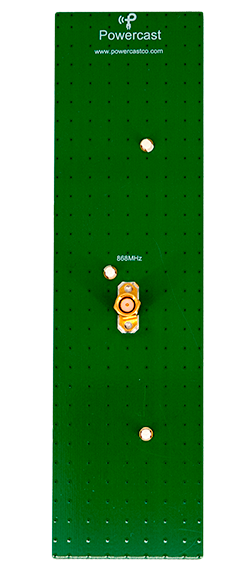

Powercast_PA-868-01_web-3

Antenna Parameters

The PA-868-01 has the following parameters:

  • Frequency Range: 863 – 870 MHz
  • Peak Gain: 4.75 (6.77 dBi)
  • Return Loss: < -10dB (863 – 873 MHz)
  • Impedance: 50 ohms
  • Radiation Pattern: Single broadside lobe
  • Half-Power Bandwidth: 118° Vertical (widthwise), 62° Horizontal(lengthwise)
  •  Polarization: Linear – Horizontal (lengthwise)
  • VSWR: < 2:1 (862 - 874 MHz)
  • Connector: SMA
PA-868-01 Datasheet
