PA-915-01

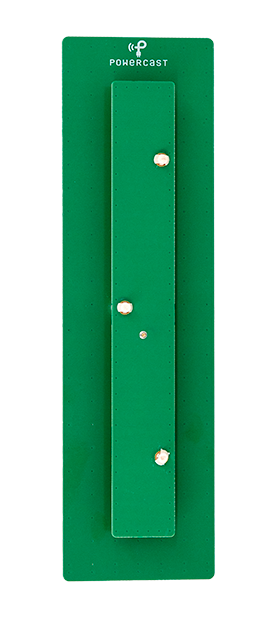

PA-915-01_small-1

The PA-915-01 is a patch antenna designed to work in the UHF RF range. It has linear polarization and a directional radiation pattern. The SMA connector makes it ideal when testing with development kits that need UHF RF energy, specifically RFID and energy harvesting.

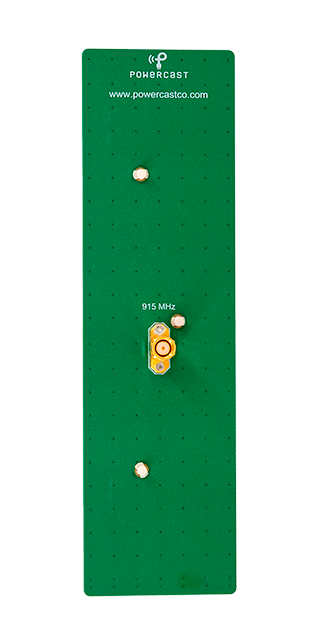

PA-915-01_small_b

Antenna Parameters

The PA-915-01 has the following parameters:

  • Frequency Range: 902 – 928 MHz
  • Peak Gain: 4.80 (6.8 dBi)
  • Return Loss: < -10dB (908.3 – 920.5 MHz)
  • Impedance: 50 ohms
  • Radiation Pattern: Horizontal
  • Half-Power Bandwidth: 120° Vertical, 62° Horizontal
  •  Polarization: Linear – Vertical
  • VSWR: < 2:1 (908 - 921 MHz)
  • Connector: SMA
PA-915-01 Datasheet
