PowerSpot Pro EDGE Hub

RAIN UHF RFID Reader & Transmitter* - PCR91505

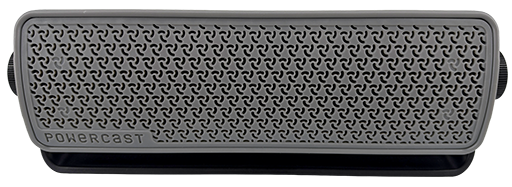

PowerSpot_Pro_EDGE_Hub_Proto_web

The PowerSpot Pro EDGE Hub, model PCR91505, is a RAIN UHF RFID reader. The Hub contains the Powercast PCR91505-M UHF RFID reader module, an integrated directional linear polarized patch antenna, a status LED and a USB-C port. The RFID module’s air interface protocol adheres to EPCglobal® UHF Class 1 Gen 2/ISO 18000-63 RFID. The device is designed to interface to other host systems via USB communication, and intended to be powered and operated via laptop (5VDC/1A) USB port. The PowerSpot Pro's RFID reader operates in the 902-928MHz ISM frequency band, communicating with and powering RFID tags and other devices. The PowerSpot® Pro is currently pending FCC Certification.*

*Please Note: This device has not been authorized as required by the rules of the Federal Communications Commission.
This device is not, and may not be, offered for sale or lease, or sold or leased, until authorization is obtained.

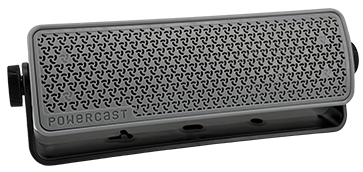

PowerSpot_Pro_EDGE_Hub_Proto_angle_web

Features

  • EPC Gen2 compliant
  • ISO/IEC 18000-63 compliant
  • Impinj E310 RFID Chip
  • Frequency Range: 902MHz to 928MHz
  • Maximum EIRP: +36dBm (4W)
  • UHF Module soldered down with integrated antenna
  • Status LED
  • Compact hard case packaging with a swivel stand and wall mounting option
  • -40°C to +50°C operational temperature range
  • Powercast Windows Compatible Tag Reader App Coming Soon!

Applications

  • Automated Inventory Management
  • Industrial Asset Tracking
  • Supply Chain & Logistics Automation
  • Secure Access Control
  • Fleet & Vehicle Tracking
  • Data Center & IT Asset Management
  • Cold Chain Monitoring
  • Environmental Monitoring
