Magnetic Resonance Evaluation Kit

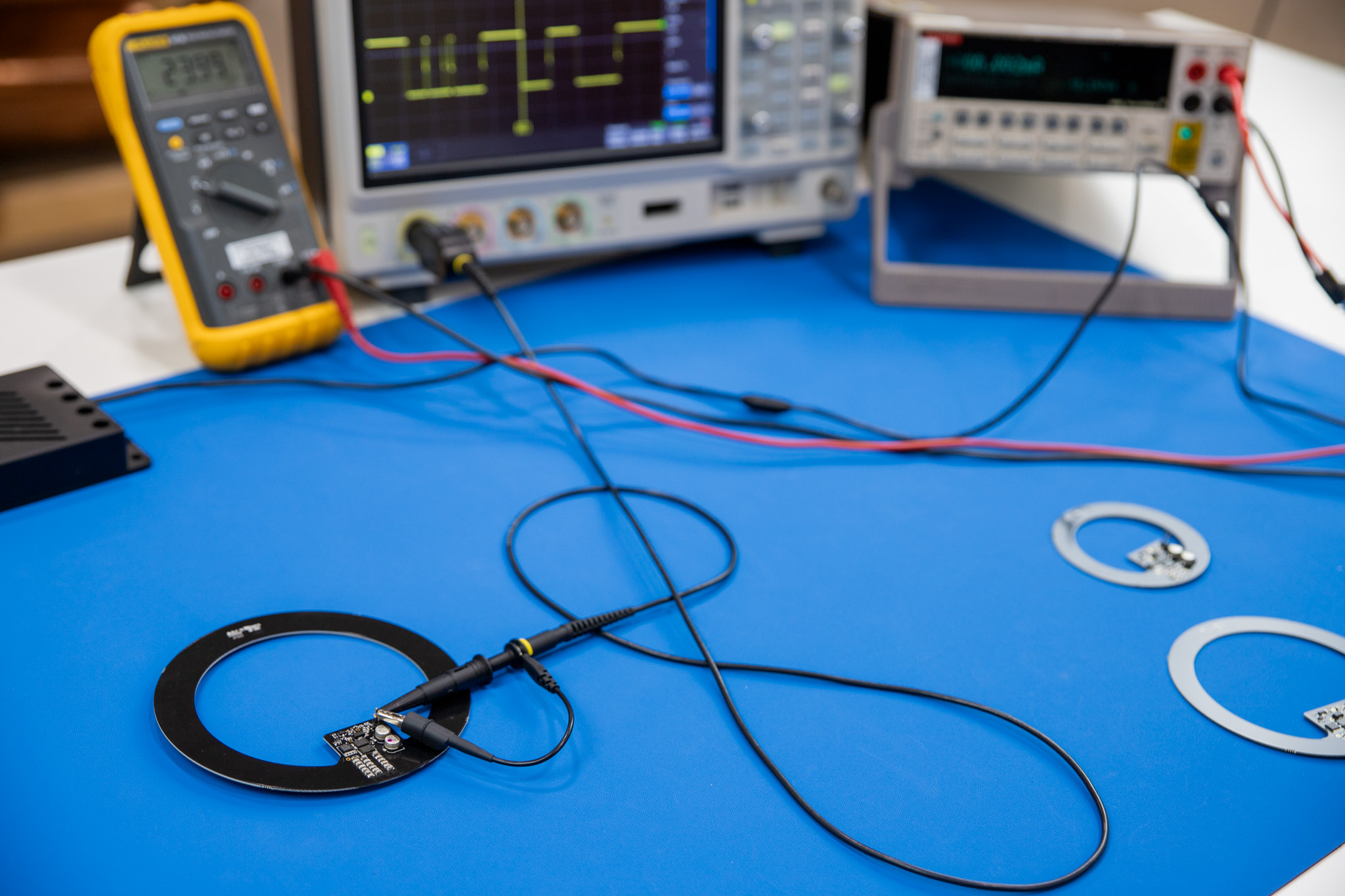

Designed for R&D teams to explore wire-free power, Powercast’s Magnetic Resonance Eval Kit provides everything you need to jump-start innovation for your projects. With our Eval Kit, your team can easily experiment, prototype, and experience the magic of our wire-free power solutions. See firsthand how our technology can reduce the need for batteries, eliminate power cords, and open new possibilities for your next-gen product design.

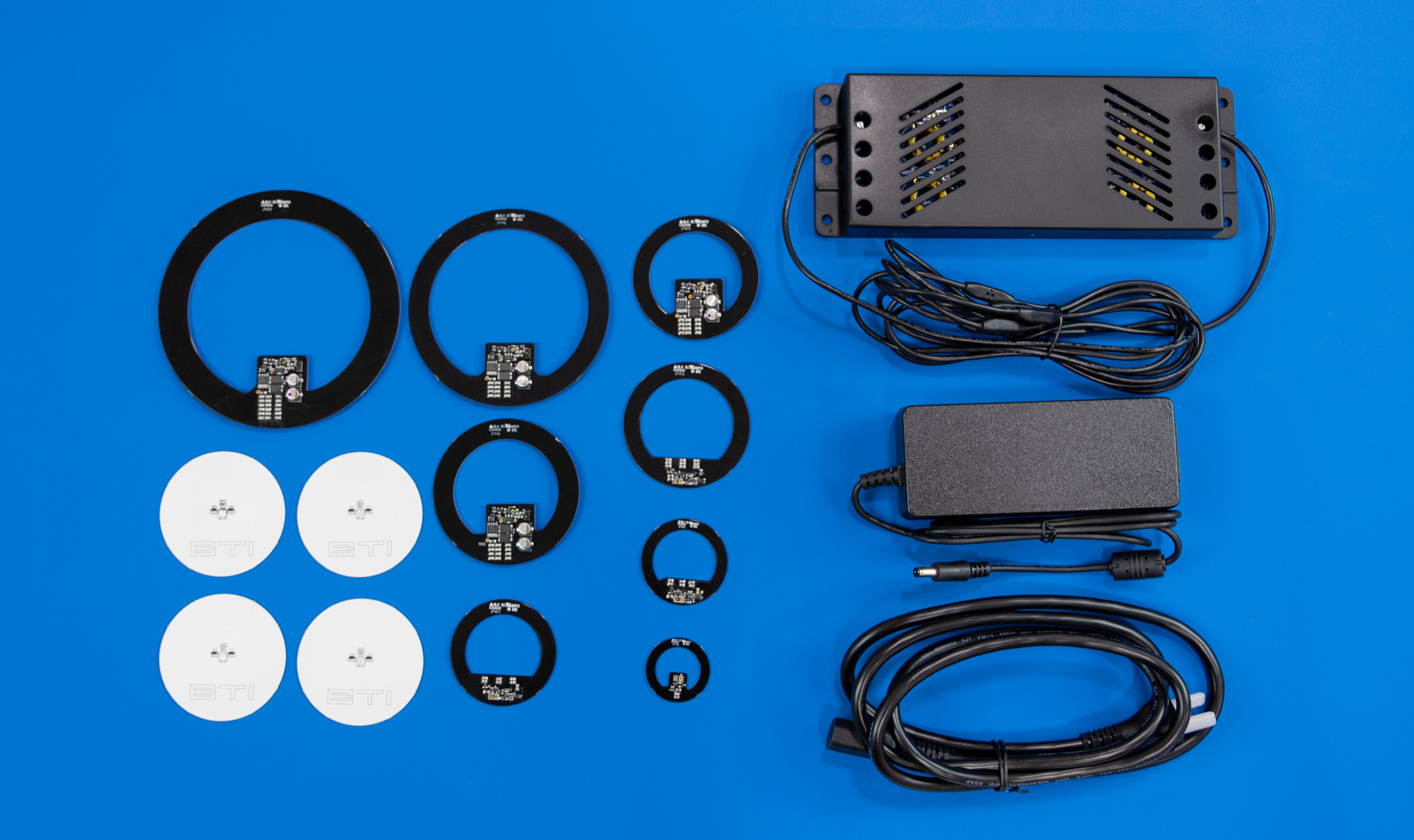

The kit includes a generator with a flexible wire loop that can be embedded into a surface to create a Wire-Free Power Zone, as well as a variety of receivers in different sizes and specifications that can be integrated into your devices, enabling them to receive power wirelessly. Not sure how to integrate this technology? Powercast offers product retrofit and integration design services, as well as full end-to-end product design and development solutions.

Magnetic resonance technology has received FCC & CE certification, and our kit is primed and ready to be integrated into your next build.

(1) Generator

Our 100W RF generator supplies up to 100W of wire-free power to charge or power multiple devices simultaneously.

The wire loop comes mounted to a flexible, rolled mat in a ~51″x18″ loop. The loop is capable of being embedded around the edge of various non-metal surfaces, and is optimized for approximately a 2×4 foot desktop.

(8) Power Receivers + (4) LED Indicators

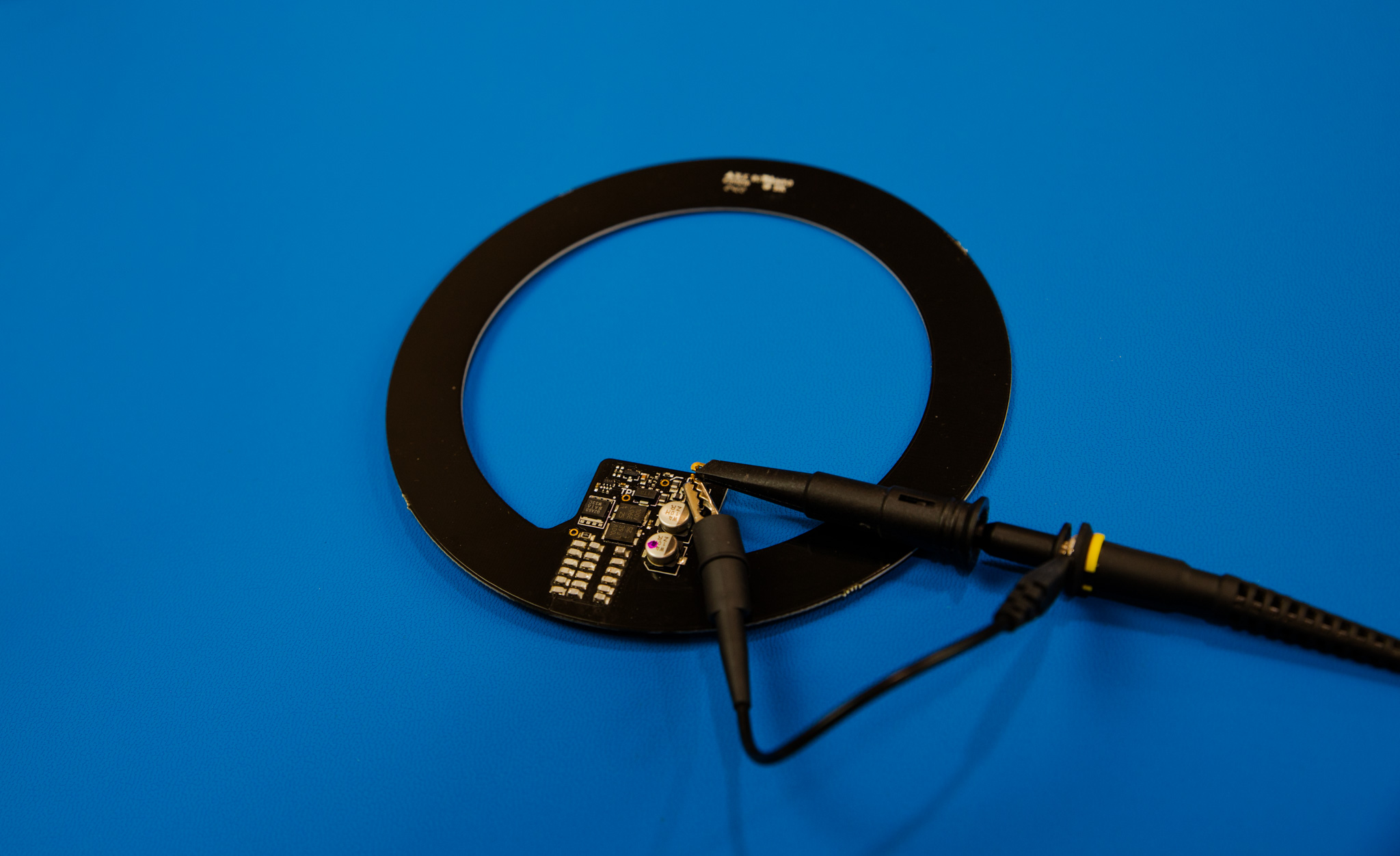

The kit includes 8 receivers, representing a variety of sizes and configurations as well as 4 LED indicator power receivers. In general, the bigger the receiver, the more power it can intake.

For a detailed list of the included receivers, download our Magnetic Resonance Eval Kit Guide.

The Powercast team provides documentation as well as design and engineering consulting services to assist you will integrating wireless power into your environments and products. Please see below for the latest Magnetic Resonance Eval Kit Overview and Quick Start Guide.

AirBrite Development Kit

Our AirBrite Development Kit, powered by Etherdyne, lets you evaluate magnetic resonance technology in a small form-factor. Shed the restrictions and complications of wires and cords and let your engineering curiosity take over!

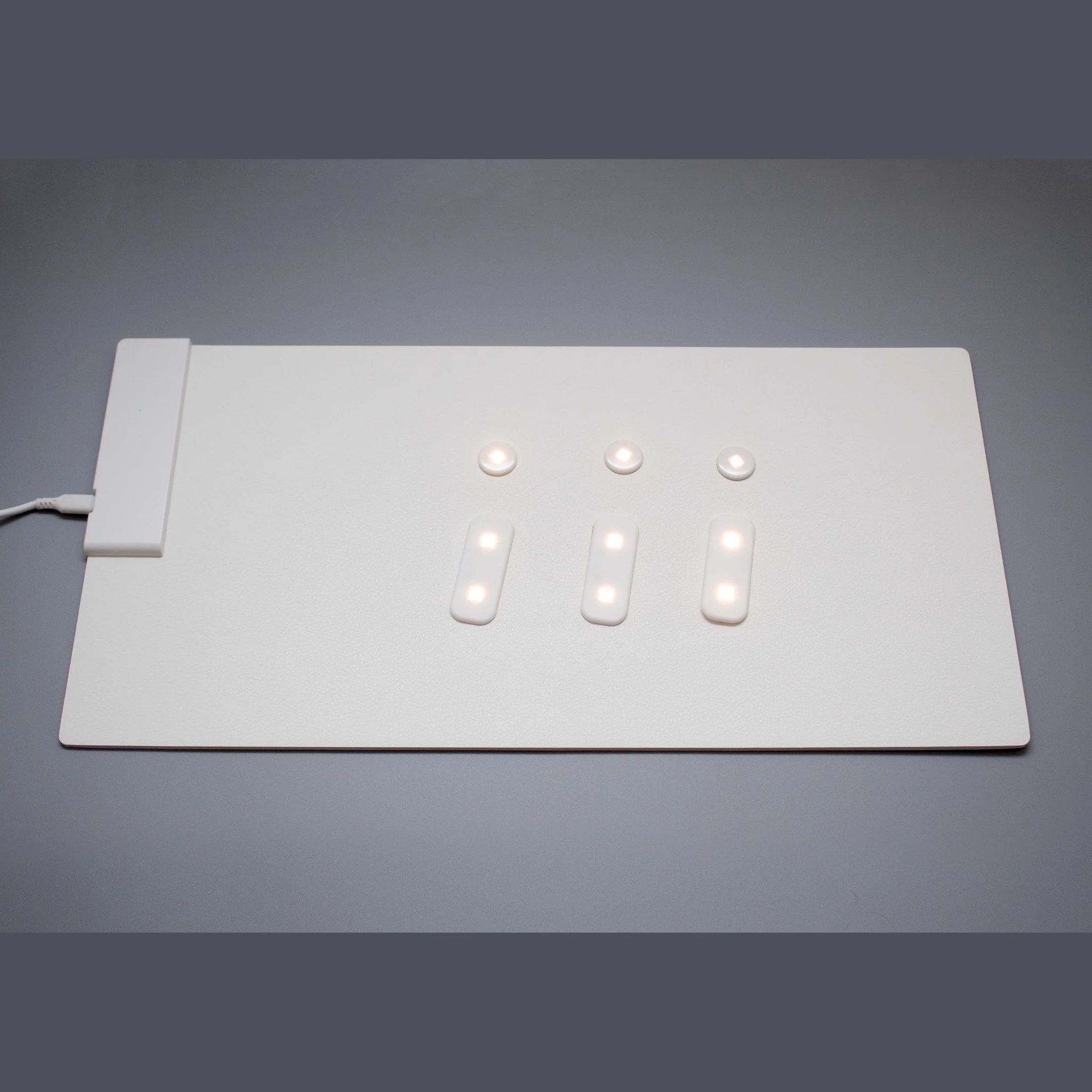

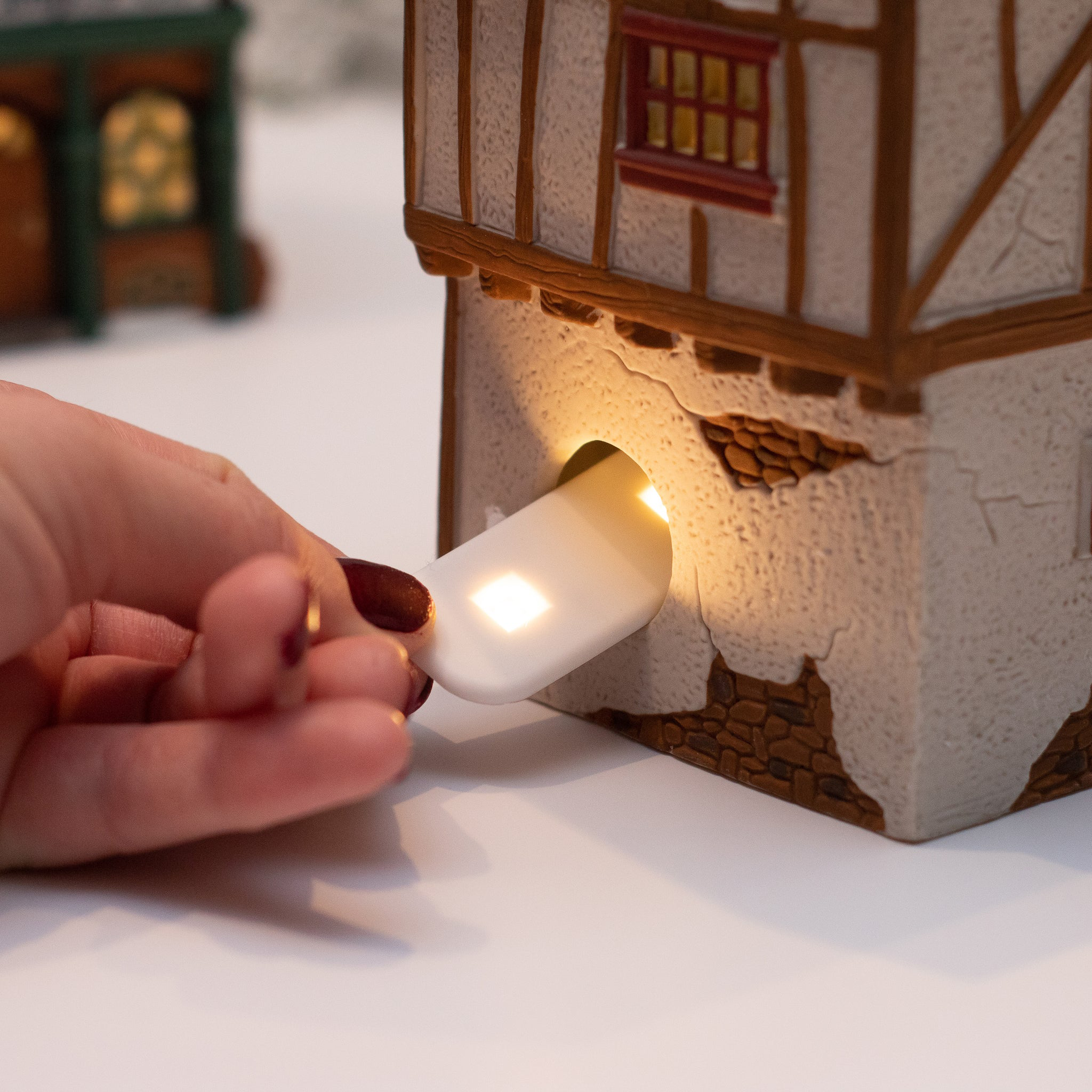

Simply place the active mat on any non-metallic surface and plug it into any wall outlet. Next, place the included passive mats next to the active mat and watch as the wireless transfer of electrical power illuminates the receivers. The receiver lights work through most surfaces and objects so you can get creative by covering the mats with various non-conductive materials.

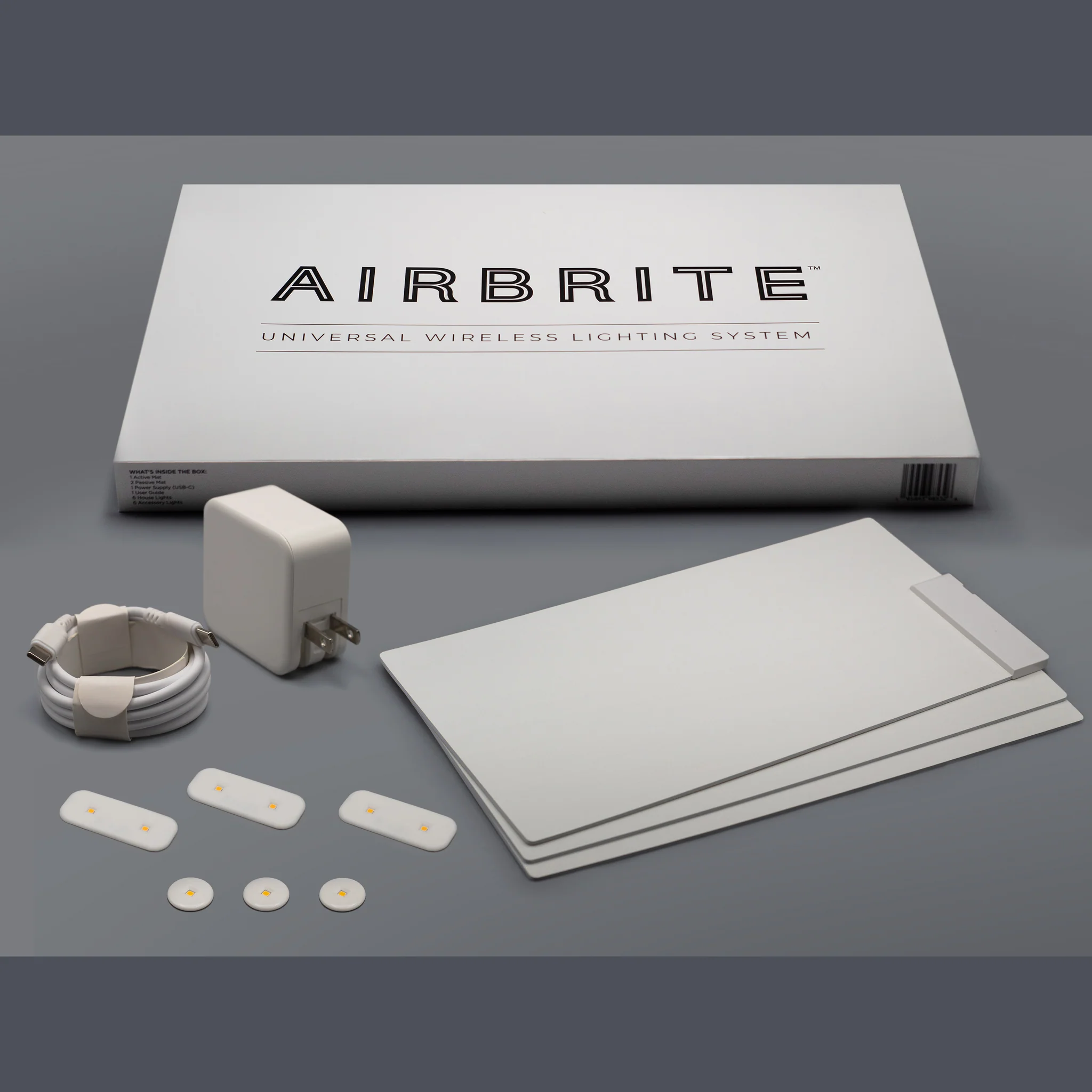

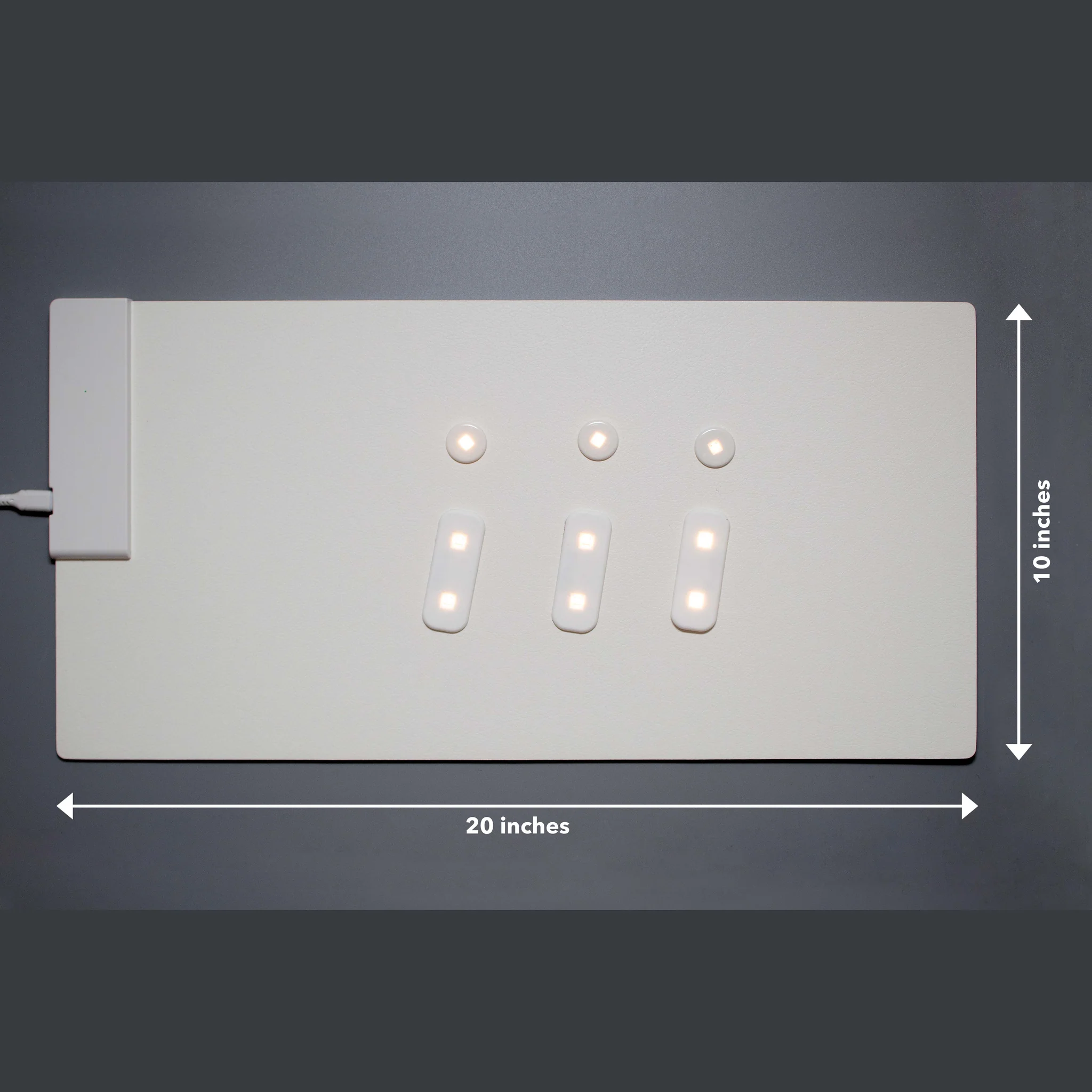

(1) Active Mat, 10 x 20 inches, rigid form-factor
(2) Passive Mats, each 10 x 20 inches, rigid form-factor
(1) Power Supply with 60-inch cord

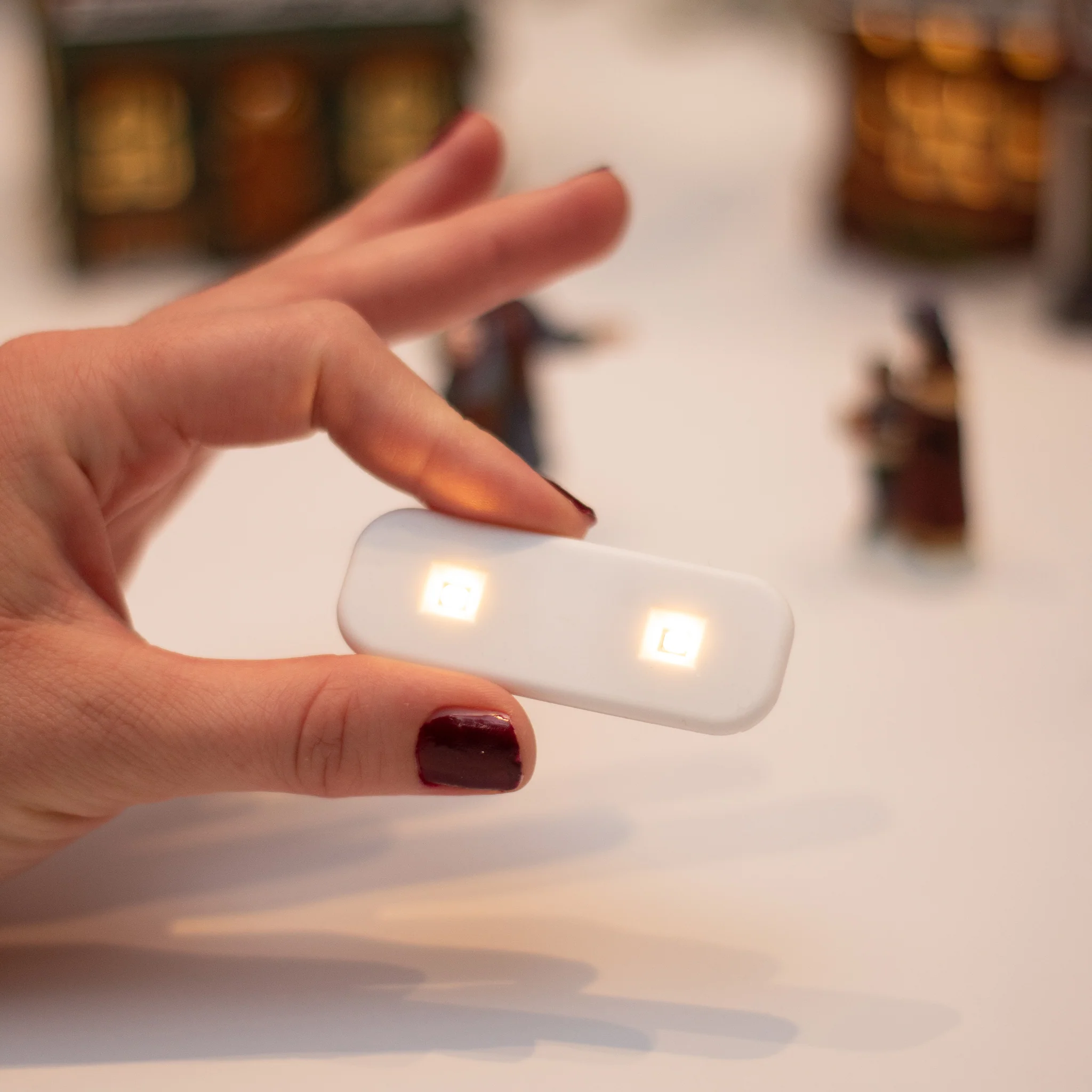

(6) Double Light Receivers – 40 Lumens each, 2700K Soft, Warm Light
(6) Single Light Receivers – 20 Lumens each, 2700K Soft, Warm Light
Printed Instructions & Product Guide

Please note – While you can use the mats in numerous configurations, the mats do have spacial limitations. They can be spaced adjacent to each other or with about 1 or 2 inches between them. However, the mats are rigid and cannot be bent, folded or cut since this will destroy the resonant technology inside. Any bends, folds, creases, slices or cuts in the mats will void the warranty. They are durable but not changeable.

Magnetic Resonance Eval Kits

Magnetic Resonance Evaluation Kit

(1) Generator

(8) Power Receivers + (4) LED Indicators

AirBrite Development Kit

To purchase magnetic resonance evaluation kits, contact our sales team.
